MIPL 1500 Fully Automated Vacuum Impregnation Machine
The MIPL 1500 vacuum impregnation machine is an advanced technology, fully automatic, continuous process system. It can be completely programmed to change the functions of the tanks as per required operations of sinking, sector drawing, sector sink washing, and rotary washing. It is also possible to impregnate, different castings in the same batch without special fixturing. All of these innovative features ensure complete operator free impregnation cycles and automated process control, providing complete peace of mind. Optional X, Y and Z axis movements provide the system with total flexibility of process specifications.
SALIENT FEATURES MIPL 1500
- Equipped with a Stainless Steel basket with PP fixturing, patented by Teknoseal Group
- Fitted with 8 removable trays, depending on the size of the castings being impregnated,
- Flexible design for either 2 large trays, 4 medium trays or 8 small trays depending on customer needs.
- Designed to handle high volumes effortlessly
( Watch Video Button )
MIPL 1100 Fully Automated Vacuum Impregnation Machine
The MIPL 1100 vacuum impregnation machine is an advanced technology, fully automatic, continuous process system. It can be completely programmed to change the functions of the tanks as per required operations of sinking, sector drawing, sector sink washing, and rotary washing. It is also possible to impregnate, different castings in the same batch without special fixturing. All of these innovative features ensure complete operator free impregnation cycles and automated process control, providing complete peace of mind. Optional X, Y and Z axis movements provide the system with total flexibility of process specifications.
SALIENT FEATURES MIPL 1100
- Flexible basket design allows 4 small trays or can be modified to 2 big trays as per the requirement
- PP fixturing ensures that there are no dent damages to the machined castings.
- Safety fencing with safety doors interlocked with the gantry PLC for operator safety.
Maintenance platform with CAT Ladder & safety door interlocked with the gantry PLC for Operator safety.
( Watch Video Button )

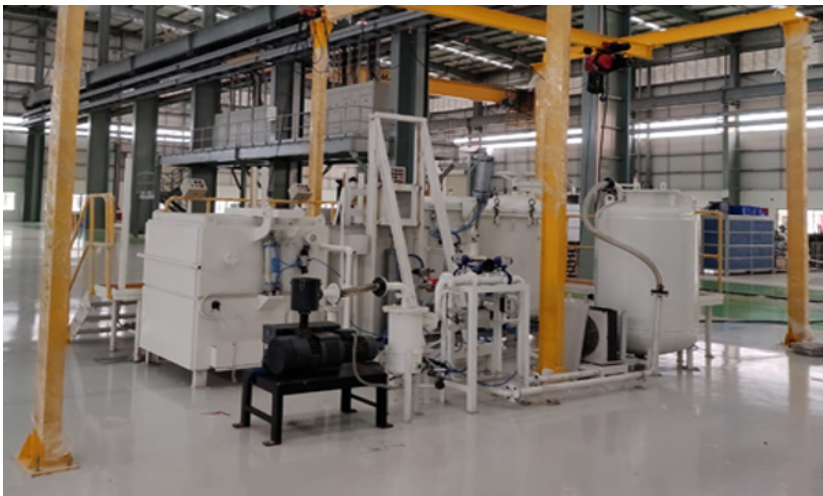

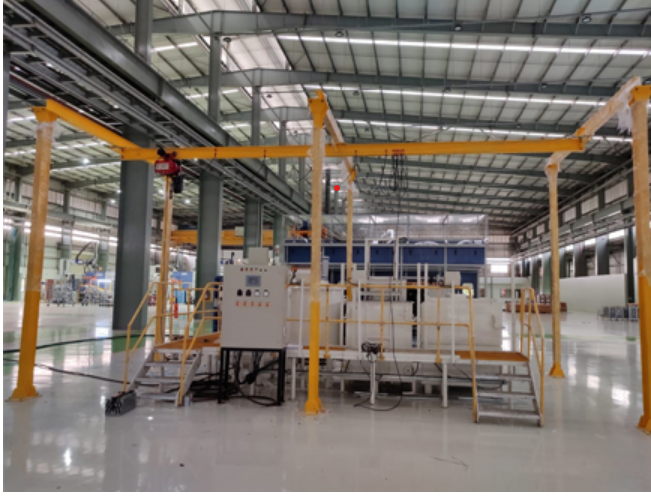

MIPL 825 Semi Automated Pick and Place Vacuum Impregnation Machine
The MIPL 825 is an ideal high performance, low budget vacuum impregnation solution. Its versatile capabilities rise effectively to handle challenging impregnation assignment ments with ease. It is a semi automatic machine with a robotic pick and place gantry. All tank functions are performed by the tanks of the system.
SALIENT FEATURES OF MIPL 825
- SS baskets with removable type tray having pp fixturing.
Designed with single tray per basket
- . PP fixturing to prevent dent damages to castings
Rotary Wash-1 chamber and Rotary Wash-2 chambers are connected to the SWRS system for sealant recovery from wash water.
Fully automatic pick and place robotic gantry system
Safety fencing, safety doors interlocked with the gantry plc for operator Safety.
Maintenance platform with CAT ladder & safety door interlocked with the Gantry plc for operator safety
( Watch Video Button )
